Ceratizit
10270021

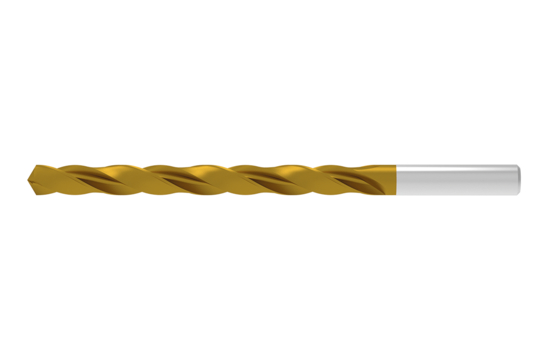

HSSE TWIST DRILL
Specifications
| Coolant Fed | Without IC |
|---|---|
| Coating/Finish | TiN |
| Number Of Flutes | 2 |
| Overall Length (Metric) | 85 |
| Diameter (Inch) | 0.08 |
| Material | HSS-E |
| Diameter (Metric) | 2 |
| Overall Length (Inch) | 3.35 |
| Short Description | UNI.2,10.R.10D.DIN340 TIN |
| Long Description | HSSE TWIST DRILL UNI.2,10.R.10D.DIN340 TIN |
| Unit Of Measure | Metric |
| Height (Decimal) | 0.51 |
| Length (Decimal) | 3.58 |
| Width (Decimal) | 0.51 |
| Cutting Direction | Right |
| Length of Cut | 10XD |
| Point Angle | 118 degrees |
| Connection Diameter (Decimal) | 0.08 |
| Connection Diameter (Metric) | 2 |
| Connection Diameter Tolerance | H8 |
| Diameter Tolerance | H8 |
| Protruding Length (Decimal) | 2.25 |
| Protruding Length (Metric) | 570 |
| Shank Length (Decimal) | 1.15 |
| Shank Length (Metric) | 29 |
| Usable Length (Decimal) | 0.79 |
| Usable Length (Metric) | 20 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 2.21 |
| length chip flute (Metric) | 56 |
| Base Item Number | TYP_UNI |
| Connection Type | CYL |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Shank Length (Inch) | 1.142 |
| Connection diameter machine side (inch) | 0.079 |
| length chip flute (Inch) | 2.205 |
| Coolant | WITHOUT_IC |
| Item Width (Inches) | 0.51 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 2.0 |
| Connection diameter machine side tolerance | h8 |
| Base Material | HSS_E |
| Item Weight (lbs) | 0.009 |
| Item Height (Inches) | 0.51 |
| Cutting Diameter (mm) | 2.00 mm |
| Item Length (Inches) | 3.58 |
| Shank Length (mm) | 29.0 |
| Cutting Diameter Tolerance | h8 |
| Usable length (Inch) | 0.787 |
| Cutting Diameter (Inch) | 0.079 |
