Ceratizit
10280185

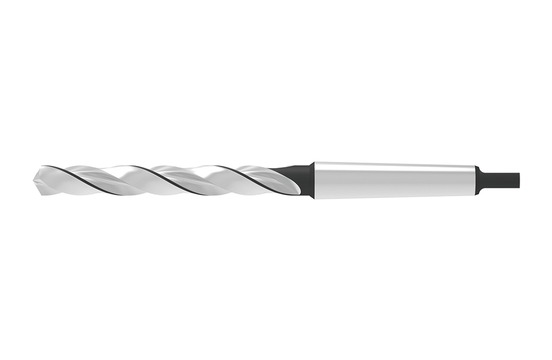

HSSE TWIST DRILL
Specifications
| Diameter (Metric) | 18 |
|---|---|
| Overall Length (Inch) | 8.98 |
| Overall Length (Metric) | 228 |
| Material | HSS-E |
| Coating/Finish | VAP |
| Diameter (Inch) | 0.71 |
| Number Of Flutes | 2 |
| Unit Of Measure | Metric |
| Height (Decimal) | 0.87 |
| Width (Decimal) | 0.87 |
| Short Description | WTL.18,50.R.5D.DIN345.MK2 VAP |
| Long Description | HSSE TWIST DRILL WTL.18,50.R.5D.DIN345.MK2 VAP |
| Cutting Direction | Right |
| Length of Cut | 5XD |
| Point Angle | 130 degrees |
| Connection Diameter Tolerance | H8 |
| Connection Type | MKG |
| Diameter Tolerance | H8 |
| Length (Decimal) | 9.21 |
| Morse Taper Adapter Size | 2 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 5.12 |
| length chip flute (Metric) | 130 |
| Base Item Number | TYP_WTL |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| length chip flute (Inch) | 5.118 |
| Item Width (Inches) | 0.87 |
| Connection type machine side | MKG |
| Connection diameter machine side tolerance | h8 |
| Base Material | HSS_E |
| Item Weight (lbs) | 0.717 |
| Item Height (Inches) | 0.87 |
| Cutting Diameter (mm) | 1.80 cm |
| Item Length (Inches) | 9.21 |
| Cutting Diameter Tolerance | h8 |
| Cutting Diameter (Inch) | 0.709 |
