Ceratizit
10315195

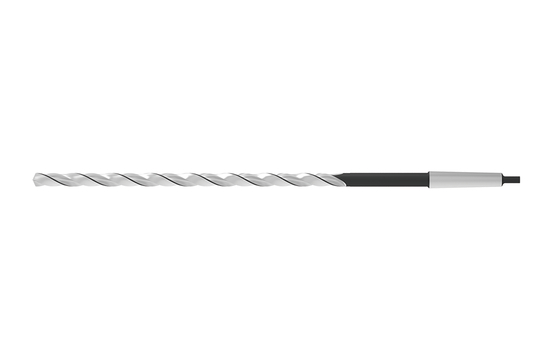

HSS TWIST DRILL, SERIES 2
Specifications
| Coating/Finish | VAP |
|---|---|
| Number Of Flutes | 2 |
| Overall Length (Metric) | 465 |
| Diameter (Inch) | 0.75 |
| Material | HSS |
| Diameter (Metric) | 19 |
| Overall Length (Inch) | 18.31 |
| Short Description | WTL-R2.19,50.R.10D.DIN1870.MK2 VAP |
| Long Description | HSS TWIST DRILL, SERIES 2 WTL-R2.19,50.R.10D.DIN1870.MK2 VAP |
| Unit Of Measure | Metric |
| Height (Decimal) | 0.94 |
| Length (Decimal) | 18.54 |
| Width (Decimal) | 0.94 |
| Cutting Direction | Right |
| Length of Cut | G10XD |
| Point Angle | 130 degrees |
| Connection Diameter Tolerance | H8 |
| Diameter Tolerance | H8 |
| Morse Taper Adapter Size | 2 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 12.21 |
| length chip flute (Metric) | 310 |
| Base Item Number | TYP_WTL |
| Connection Type | MKG |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| length chip flute (Inch) | 12.205 |
| Item Width (Inches) | 0.94 |
| Connection type machine side | MKG |
| Connection diameter machine side tolerance | h8 |
| Base Material | HSS |
| Item Weight (lbs) | 1.506 |
| Item Height (Inches) | 0.94 |
| Cutting Diameter (mm) | 1.90 cm |
| Item Length (Inches) | 18.54 |
| Cutting Diameter Tolerance | h8 |
| Cutting Diameter (Inch) | 0.748 |
