Ceratizit
10340030

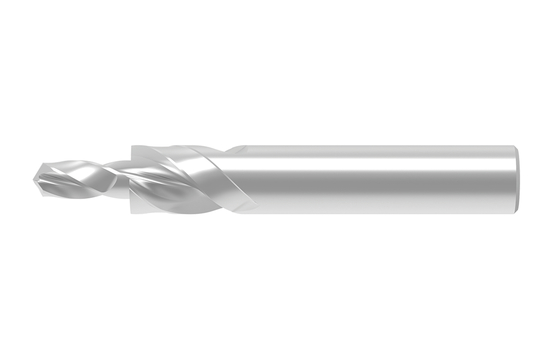

HSS SUBLAND DRILL SHORT
Specifications
| Long Description | HSS SUBLAND DRILL SHORT N-SB.3,40.R.180°.DIN8376 |
|---|---|
| Short Description | N-SB.3,40.R.180°.DIN8376 |
| Shank Length (Inch) | 2.480 |
| Connection diameter machine side (inch) | 0.748 |
| Flute Helix Hand | LEFT |
| length chip flute (Inch) | 2.520 |
| Flute Count | 2 |
| Coolant | WITHOUT_IC |
| Item Width (Inches) | 0.94 |
| Connection type machine side | CYL |
| For Thread | M10 |
| Overall Length (mm) | 12.7 cm |
| Connection diameter machine side (mm) | 19.0 |
| Connection diameter machine side tolerance | h8 |
| Base Material | HSS |
| Item Weight (lbs) | 0.492 |
| Cutting Direction | RIGHT |
| Item Height (Inches) | 0.94 |
| Protruding Length (Metric) | 65.0 |
| Cutting Diameter (mm) | 1.05 cm |
| Item Length (Inches) | 5.24 |
| Coating | BLANK |
| length chip flute (Metric) | 64.0 |
| Shank Length (mm) | 63.0 |
| Cutting Diameter Tolerance | h6 |
| Point Angle | 118 |
| Step Diameter 1 Length (Metric) | 23.000 |
| Step Count | 2 |
| Cutting Diameter (Inch) | 0.413 |
| Overall Length (Inch) | 5.000 |
