Ceratizit
10350120

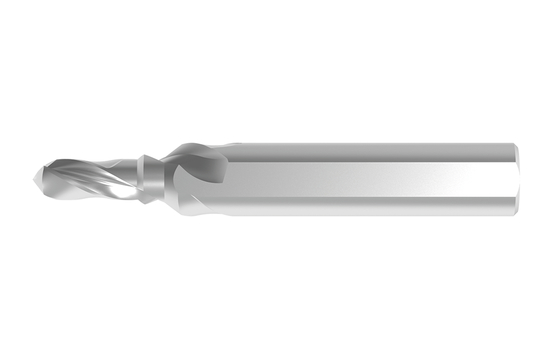

HSS STEPPED DRILL
Specifications
| Long Description | HSS STEPPED DRILL SB-N.10,20.R.60°.K.WN VAP |
|---|---|
| Short Description | SB-N.10,20.R.60°.K.WN VAP |
| Shank Length (Inch) | 1.850 |
| Cutting Diameter 1 (Metric) | 8.5 |
| Connection diameter machine side (inch) | 0.630 |
| Flute Helix Hand | LEFT |
| length chip flute (Inch) | 1.850 |
| Flute Count | 2 |
| Coolant | WITHOUT_IC |
| Item Width (Inches) | 0.79 |
| Cutting Diameter 2 (Metric) | 10.5 |
| Connection type machine side | CYL |
| For Thread | M10 |
| Overall Length (mm) | 9.4 cm |
| Connection diameter machine side (mm) | 16.0 |
| Connection diameter machine side tolerance | h8 |
| Base Material | HSS |
| Item Weight (lbs) | 0.223 |
| Cutting Direction | RIGHT |
| Item Height (Inches) | 0.79 |
| Protruding Length (Metric) | 48.0 |
| Item Length (Inches) | 3.94 |
| Coating | VAP |
| length chip flute (Metric) | 47.0 |
| Shank Length (mm) | 47.0 |
| Point Angle | 118 |
| Step Diameter 1 Length (Metric) | 23.000 |
| Cutting Diameter 1 Tolerance | h8 |
| Step Count | 3 |
| Overall Length (Inch) | 3.701 |
