Ceratizit
10480315

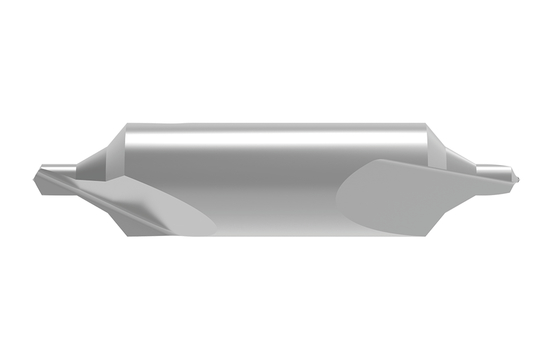

HSS CENTRE DRILL
Specifications
| Overall Length (Inch) | 2.45 |
|---|---|
| Coating/Finish | Uncoated |
| Number Of Flutes | 2 |
| Overall Length (Metric) | 62 |
| Material | HSS |
| Point Angle | 118 degrees |
| Short Description | N-ZB.3,15.R.DIN333-B |
| Long Description | HSS CENTRE DRILL N-ZB.3,15.R.DIN333-B |
| Unit Of Measure | Metric |
| Cutting Diameter | 3.15 mm |
| Cutting Direction | Right |
| Cutting Diameter (Decimal) | 0.13 |
| Connection Diameter (Decimal) | 0.45 |
| Connection Diameter (Metric) | 11.2 |
| Connection Diameter Tolerance | H8 |
| Connection Type | CYL |
| Coolant | Without IC |
| Flute Helix Hand | Left |
| Length (Decimal) | 2.6 |
| Width (Decimal) | 0.59 |
| Height (Decimal) | 0.59 |
| Point Length (Metric) | 3.9 |
| Point Length (Decimal) | 0.16 |
| Step Count | 1 |
| Countersink Angle | 60 degrees |
| Interference Cutting Diameter (Decimal) | 0.27 |
| Interference Cutting Diameter (Metric) | 6.7 |
| Interference Cutting Diameter Tolerance | K12 |
| Profile Included Angle | 120 degrees |
| Step Diameter 1 Length (Decimal) | 0.12 |
| Step Diameter 1 Length (Metric) | 2.95 |
| Base Item Number | TYP_ZB |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Connection diameter machine side (inch) | 0.394 |
| Item Width (Inches) | 0.51 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 10.0 |
| Connection diameter machine side tolerance | h8 |
| Base Material | HSS |
| Item Weight (lbs) | 0.067 |
| Item Height (Inches) | 0.51 |
| Cutting Diameter (mm) | 2.50 mm |
| Point Length (in) | 0.122 |
| Item Length (Inches) | 2.44 |
| Cutting Diameter (Inch) | 0.098 |
