Ceratizit
10520120

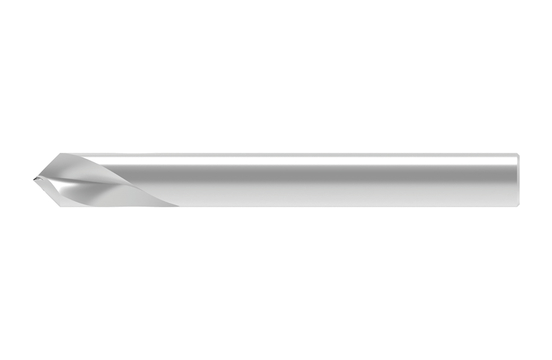

HSS NC SPOT DRILL SHORT
Specifications
| Overall Length (Inch) | 4.02 |
|---|---|
| Coating/Finish | Uncoated |
| Number Of Flutes | 2 |
| Flute Length (Inch) | 1.19 |
| Overall Length (Metric) | 102 |
| Material | HSS |
| Flute Length (Metric) | 30 |
| Point Angle | 90 degrees |
| Short Description | NC-A.12,00.R.90°.K.WN |
| Long Description | HSS NC SPOT DRILL SHORT NC-A.12,00.R.90°.K.WN |
| Unit Of Measure | Metric |
| Cutting Diameter | 12 mm |
| Cutting Direction | Right |
| Cutting Diameter (Decimal) | 0.48 |
| Connection Diameter (Decimal) | 0.48 |
| Connection Diameter (Metric) | 12 |
| Connection Diameter Tolerance | H8 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | H6 |
| Flute Helix Hand | Left |
| Length (Decimal) | 4.25 |
| Width (Decimal) | 0.59 |
| Height (Decimal) | 0.59 |
| Protruding Length (Decimal) | 1.22 |
| Protruding Length (Metric) | 31 |
| Shank Length (Decimal) | 2.84 |
| Shank Length (Metric) | 72 |
| Base Item Number | TYP_NC-A |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Shank Length (Inch) | 2.520 |
| Connection diameter machine side (inch) | 0.394 |
| length chip flute (Inch) | 0.984 |
| Item Width (Inches) | 0.51 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 10.0 |
| Connection diameter machine side tolerance | h8 |
| Base Material | HSS |
| Item Weight (lbs) | 0.125 |
| Item Height (Inches) | 0.51 |
| Cutting Diameter (mm) | 1.00 cm |
| Item Length (Inches) | 3.74 |
| length chip flute (Metric) | 25.0 |
| Shank Length (mm) | 64.0 |
| Cutting Diameter (Inch) | 0.394 |
