Ceratizit
1069401700

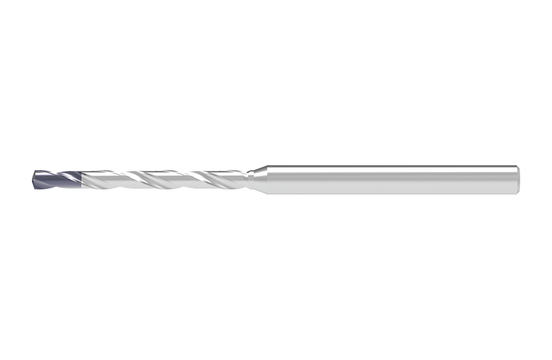

SOLID CARBIDE HELICAL DEEP HOLE DRILL
Specifications
| Cutting Diameter (Inch) | 0.067 |
|---|---|
| Drill Point Angle | 128 |
| Product Line | WNT_PERFORMANCE |
| Shank Length (Inch) | 1.102 |
| Connection diameter machine side (inch) | 0.118 |
| Flute Helix Hand | LEFT |
| length chip flute (Inch) | 0.669 |
| Coolant | IC_CENTRAL |
| Item Width (Inches) | 0.51 |
| Connection type machine side | CYL |
| Overall Length (Decimal Inch) | 1.929 |
| Overall Length (mm) | 4.9 cm |
| Connection diameter machine side (mm) | 3.0 |
| Connection diameter machine side tolerance | H6 |
| Base Material | VHM |
| Item Weight (lbs) | 1.000 |
| Cutting Direction | RIGHT |
| Item Height (Inches) | 0.51 |
| Number Of Flutes | 2 |
| Protruding Length (Metric) | 21.0 |
| Cutting Diameter (mm) | 1.70 mm |
| Usable Length (Metric) | 13.6 |
| Item Length (Inches) | 2.56 |
| length chip flute (Metric) | 17.0 |
| Shank Length (mm) | 28 |
| Cutting Diameter Tolerance | h6 |
| Point Angle | 128 |
| Usable length (Inch) | 0.535 |
