Ceratizit

1069501400

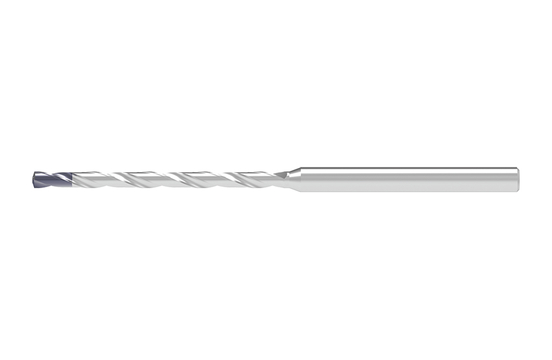

SOLID CARBIDE HELICAL DEEP HOLE DRILL

Specifications

Cutting Diameter (Inch)0.055
Drill Point Angle128
Product LineWNT_PERFORMANCE
Shank Length (Inch)1.102
Connection diameter machine side (inch)0.118
Flute Helix HandLEFT
length chip flute (Inch)0.772
CoolantIC_CENTRAL
Item Width (Inches)0.51
Connection type machine sideCYL
Overall Length (Decimal Inch)2.047
Overall Length (mm)5.2 cm
Connection diameter machine side (mm)3.0
Connection diameter machine side toleranceH6
Base MaterialVHM
Item Weight (lbs)1.000
Cutting DirectionRIGHT
Item Height (Inches)0.51
Number Of Flutes2
Protruding Length (Metric)24.0
Cutting Diameter (mm)1.40 mm
Usable Length (Metric)16.8
Item Length (Inches)2.56
length chip flute (Metric)19.6
Shank Length (mm)28
Cutting Diameter Toleranceh6
Point Angle128
Usable length (Inch)0.661
