Ceratizit
10700140

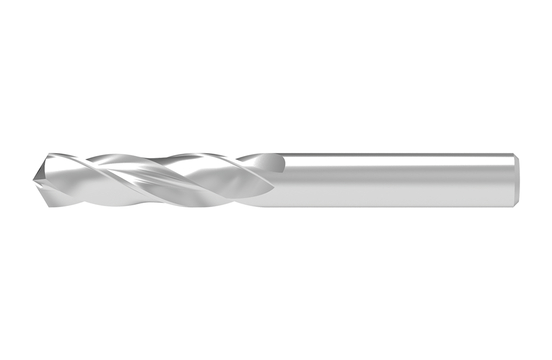

SOLID CARBIDE TWIST DRILL
Specifications
| Cutting Diameter (Inch) | 0.551 |
|---|---|
| Drill Point Angle | 118 |
| Product Line | WNT_STANDARD |
| Shank Length (Inch) | 2.087 |
| Connection diameter machine side (inch) | 0.551 |
| Flute Helix Hand | LEFT |
| length chip flute (Inch) | 2.126 |
| Coolant | WITHOUT_IC |
| Item Width (Inches) | 0.79 |
| Connection type machine side | CYL |
| Overall Length (Decimal Inch) | 4.213 |
| Overall Length (mm) | 10.7 cm |
| Connection diameter machine side (mm) | 14.0 |
| Connection diameter machine side tolerance | H7 |
| Base Material | VHM |
| Item Weight (lbs) | 1.000 |
| Cutting Direction | RIGHT |
| Item Height (Inches) | 0.79 |
| Number Of Flutes | 2 |
| Protruding Length (Metric) | 55.0 |
| Cutting Diameter (mm) | 1.40 cm |
| Usable Length (Metric) | 42.0 |
| Item Length (Inches) | 4.33 |
| length chip flute (Metric) | 54.0 |
| Shank Length (mm) | 53 |
| Cutting Diameter Tolerance | h7 |
| Point Angle | 118 |
| Usable length (Inch) | 1.654 |
