Ceratizit
1077702700

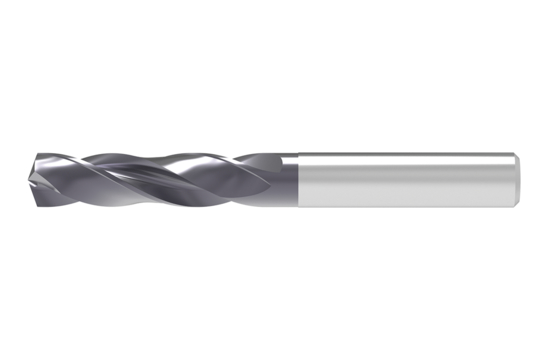

SOLID CARBIDE TWIST DRILL
Specifications
| Cutting Diameter (Inch) | 0.106 |
|---|---|
| Drill Point Angle | 140 |
| Product Line | WNT_PERFORMANCE |
| Shank Length (Inch) | 1.102 |
| Connection diameter machine side (inch) | 0.157 |
| Flute Helix Hand | LEFT |
| length chip flute (Inch) | 0.787 |
| Coolant | WITHOUT_IC |
| Item Width (Inches) | 0.51 |
| Connection type machine side | CYL |
| Overall Length (Decimal Inch) | 2.165 |
| Overall Length (mm) | 5.5 cm |
| Connection diameter machine side (mm) | 4.0 |
| Connection diameter machine side tolerance | H6 |
| Base Material | VHM |
| Item Weight (lbs) | 1.000 |
| Cutting Direction | RIGHT |
| Item Height (Inches) | 0.51 |
| Number Of Flutes | 2 |
| Protruding Length (Metric) | 27.0 |
| Cutting Diameter (mm) | 2.70 mm |
| Usable Length (Metric) | 15.9 |
| Item Length (Inches) | 2.56 |
| length chip flute (Metric) | 20.0 |
| Shank Length (mm) | 28 |
| Cutting Diameter Tolerance | h7 |
| Point Angle | 140 |
| Usable length (Inch) | 0.626 |
