Ceratizit
10786097

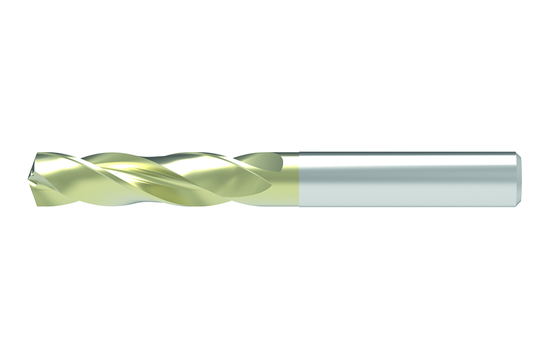

SOLID CARBIDE TWIST DRILL
Specifications
| Cutting Diameter (Inch) | 0.382 |
|---|---|
| Drill Point Angle | 140 |
| Product Line | WNT_PERFORMANCE |
| Shank Length (Inch) | 1.575 |
| Connection diameter machine side (inch) | 0.394 |
| Flute Helix Hand | LEFT |
| length chip flute (Inch) | 1.850 |
| Coolant | IC_CENTRAL |
| Item Width (Inches) | 0.59 |
| Connection type machine side | CYL |
| Overall Length (Decimal Inch) | 3.504 |
| Overall Length (mm) | 8.9 cm |
| Connection diameter machine side (mm) | 10.0 |
| Connection diameter machine side tolerance | H6 |
| Base Material | VHM |
| Item Weight (lbs) | 1.000 |
| Cutting Direction | RIGHT |
| Item Height (Inches) | 0.59 |
| Number Of Flutes | 2 |
| Protruding Length (Metric) | 49.0 |
| Cutting Diameter (mm) | 9.70 mm |
| Usable Length (Metric) | 35.0 |
| Item Length (Inches) | 3.62 |
| length chip flute (Metric) | 47.0 |
| Shank Length (mm) | 40 |
| Cutting Diameter Tolerance | m7 |
| Point Angle | 140 |
| Usable length (Inch) | 1.378 |
