Ceratizit
1079413000

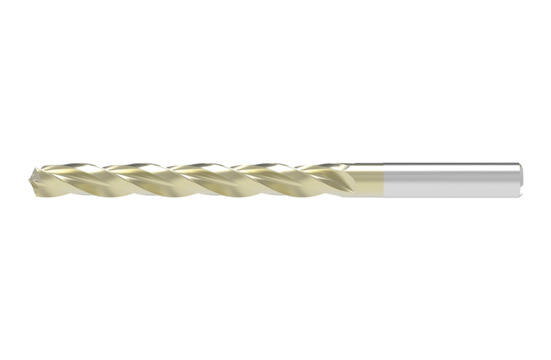

SOLID CARBIDE TWIST DRILL
Specifications
| Cutting Diameter (Inch) | 0.512 |
|---|---|
| Drill Point Angle | 135 |
| Product Line | WNT_PERFORMANCE |
| Shank Length (Inch) | 1.772 |
| Connection diameter machine side (inch) | 0.551 |
| Flute Helix Hand | LEFT |
| length chip flute (Inch) | 5.157 |
| Coolant | IC_CENTRAL |
| Item Width (Inches) | 0.83 |
| Connection type machine side | CYL |
| Overall Length (Decimal Inch) | 7.008 |
| Overall Length (mm) | 17.8 cm |
| Connection diameter machine side (mm) | 14.0 |
| Connection diameter machine side tolerance | H6 |
| Base Material | VHM |
| Item Weight (lbs) | 1.000 |
| Cutting Direction | RIGHT |
| Item Height (Inches) | 0.83 |
| Number Of Flutes | 3 |
| Morse Taper Adapter Size | 3 |
| Protruding Length (Metric) | 133.0 |
| Cutting Diameter (mm) | 1.30 cm |
| Usable Length (Metric) | 112.0 |
| Item Length (Inches) | 7.13 |
| length chip flute (Metric) | 131.0 |
| Shank Length (mm) | 45 |
| Cutting Diameter Tolerance | m7 |
| Point Angle | 135 |
| Usable length (Inch) | 4.409 |
