Ceratizit
1079612000

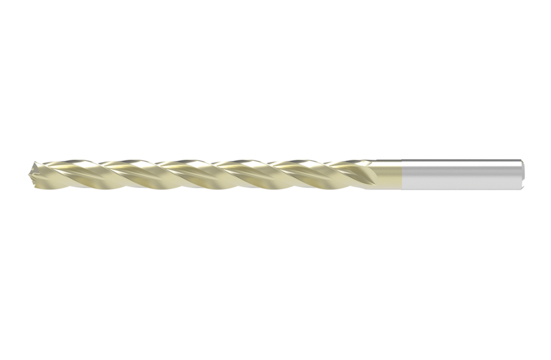

SOLID CARBIDE TWIST DRILL
Specifications
| Cutting Diameter (Inch) | 0.472 |
|---|---|
| Drill Point Angle | 135 |
| Product Line | WNT_PERFORMANCE |
| Shank Length (Inch) | 1.772 |
| Connection diameter machine side (inch) | 0.472 |
| Flute Helix Hand | LEFT |
| length chip flute (Inch) | 6.142 |
| Coolant | IC_CENTRAL |
| Item Width (Inches) | 0.91 |
| Connection type machine side | CYL |
| Overall Length (Decimal Inch) | 8.031 |
| Overall Length (mm) | 20.4 cm |
| Connection diameter machine side (mm) | 12.0 |
| Connection diameter machine side tolerance | H6 |
| Base Material | VHM |
| Item Weight (lbs) | 1.000 |
| Cutting Direction | RIGHT |
| Item Height (Inches) | 0.91 |
| Number Of Flutes | 3 |
| Protruding Length (Metric) | 159.0 |
| Cutting Diameter (mm) | 1.20 cm |
| Usable Length (Metric) | 142.0 |
| Item Length (Inches) | 8.15 |
| length chip flute (Metric) | 156.0 |
| Shank Length (mm) | 45 |
| Cutting Diameter Tolerance | m7 |
| Point Angle | 135 |
| Usable length (Inch) | 5.591 |
