Ceratizit
1082191011

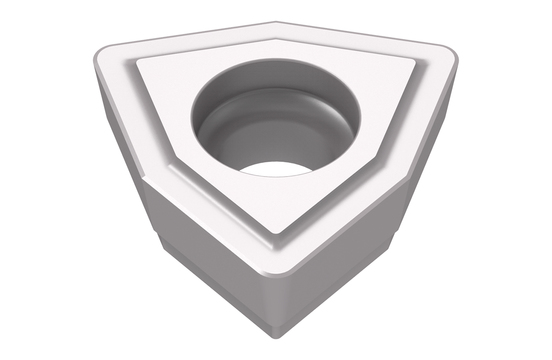

CARBIDE DRILLING INSERT
Specifications
| Corner Radius (Metric) | 0.4 |
|---|---|
| Corner Radius (Inch) | 0.016 |
| Short Description | WOEX 100504-11 BK7710 |
| Insert Thickness (Metric) | 5.3 |
| Insert Hand | NEUTRAL |
| Clearance Angle Major | 8 |
| Inscribed Circle Diameter (Metric) | 15.00 |
| Fixing Hole Diameter (Metric) | 4.9 |
| Long Description | CARBIDE DRILLING INSERT WOEX 100504-11 BK7710 |
| Cutting Edge Length (Metric) | 9.9 |
| Inscribed Circle (Metric) | 15 |
| Insert Included Angle | 84 |
