Ceratizit
1082195613

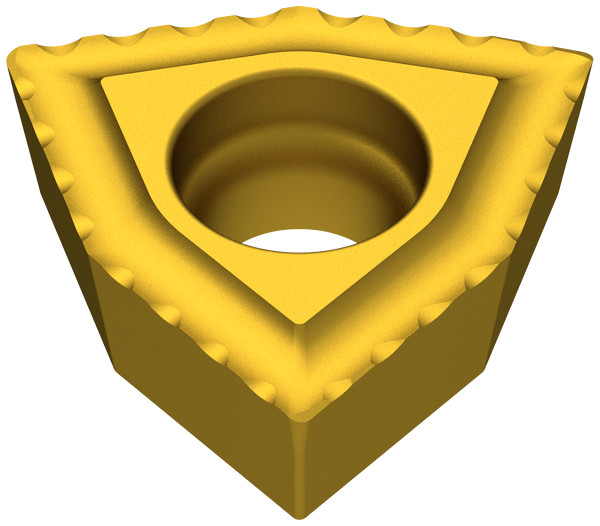

CARBIDE DRILLING INSERT
Specifications
| Corner Radius (Metric) | 0.4 |
|---|---|
| Corner Radius (Inch) | 0.016 |
| Short Description | WOEX 06T304-13 BK7325 |
| Insert Thickness (Metric) | 3.8 |
| Insert Hand | NEUTRAL |
| Clearance Angle Major | 8 |
| Inscribed Circle Diameter (Metric) | 10.00 |
| Fixing Hole Diameter (Metric) | 4.05 |
| Long Description | CARBIDE DRILLING INSERT WOEX 06T304-13 BK7325 |
| Cutting Edge Length (Metric) | 6.6 |
| Inscribed Circle (Metric) | 10 |
| Insert Included Angle | 84 |
