Ceratizit
1082230601

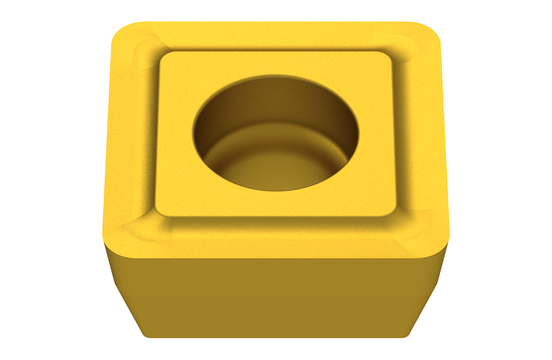

CARBIDE DRILLING INSERT
Specifications
| Corner Radius (Metric) | 0.6 |
|---|---|
| Corner Radius (Inch) | 0.024 |
| Short Description | INSERT SOEX 060306-01 BK8425 |
| Insert Thickness (Metric) | 3.18 |
| Insert Hand | NEUTRAL |
| Clearance Angle Major | 8 |
| Inscribed Circle Diameter (Metric) | 6.35 |
| Fixing Hole Diameter (Metric) | 2.65 |
| Long Description | CARBIDE DRILLING INSERT INSERT SOEX 060306-01 BK8425 |
| Cutting Edge Length (Metric) | 6.35 |
| Inscribed Circle (Metric) | 6.35 |
| Insert Included Angle | 90 |
