Ceratizit
1082322801

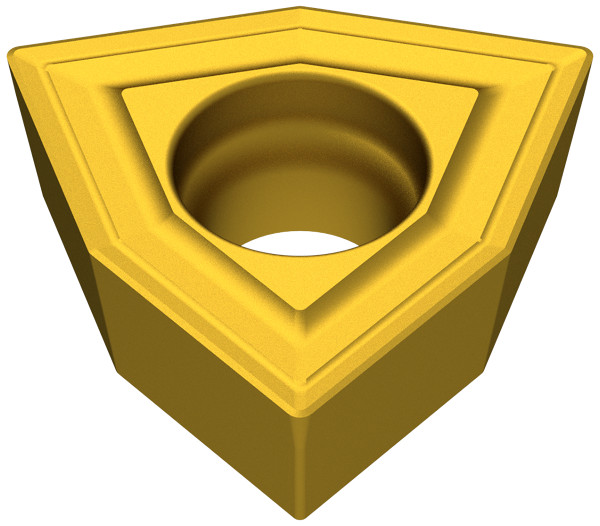

CARBIDE DRILLING INSERT
Specifications
| Corner Radius (Metric) | 0.8 |
|---|---|
| Corner Radius (Inch) | 0.031 |
| Short Description | WOEX 080408-01 BK72 |
| Insert Thickness (Metric) | 4.8 |
| Insert Hand | NEUTRAL |
| Clearance Angle Major | 8 |
| Inscribed Circle Diameter (Metric) | 12.00 |
| Fixing Hole Diameter (Metric) | 4.9 |
| Long Description | CARBIDE DRILLING INSERT WOEX 080408-01 BK72 |
| Cutting Edge Length (Metric) | 7.9 |
| Inscribed Circle (Metric) | 12 |
| Insert Included Angle | 84 |
