Ceratizit
10830708

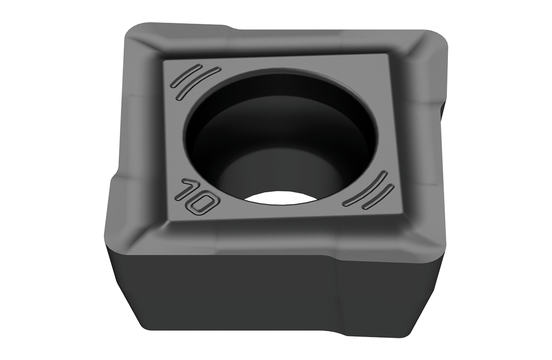

CARBIDE DRILLING INSERT
Specifications
| Corner Radius (Metric) | 0.8 |
|---|---|
| Corner Radius (Inch) | 0.031 |
| Short Description | SONT 083308ER-M30 CTCP420 |
| Insert Thickness (Metric) | 3.3 |
| Insert Hand | RIGHT |
| Clearance Angle Major | 8 |
| Insert Rake Angle | 12 |
| Inscribed Circle Diameter (Metric) | 7.7 |
| Fixing Hole Diameter (Metric) | 2.9 |
| Long Description | CARBIDE DRILLING INSERT SONT 083308ER-M30 CTCP420 |
| Cutting Edge Length (Metric) | 7.3 |
| Inscribed Circle (Metric) | 7.7 |
| Insert Included Angle | 90 |
| Wiper Edge Length (Metric) | 1.8 |
