Ceratizit
1085815099

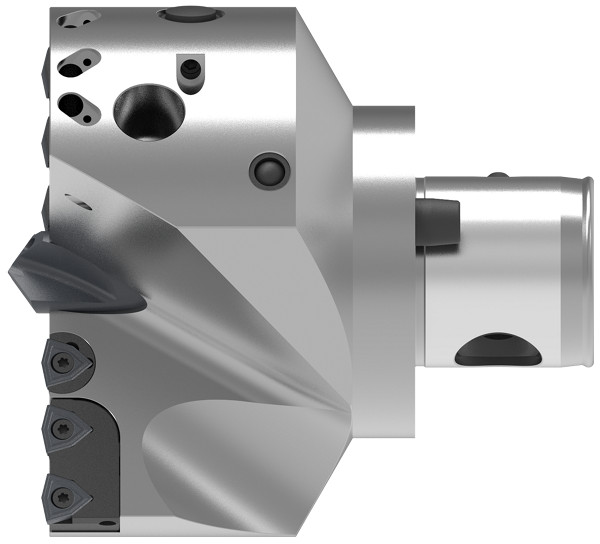

KUB V464 DRILL HEAD
Specifications
| Coolant | IC_CENTRAL |
|---|---|
| Shank Length (Inch) | 1.693 |
| Connection diameter machine side (inch) | 1.811 |
| Flute Helix Hand | L |
| Connection Diameter Workpiece Side (Metric) | 20.0 |
| Torque (NM) | 6.3 |
| Flange Diameter (Inch) | 3.150 |
| Item Width (Inches) | 0 |
| Connection type machine side | ABS |
| Overall Length (Decimal Inch) | 0 |
| Overall Length (mm) | 13.3 cm |
| Connection diameter machine side (mm) | 46.0 |
| Item Weight (lbs) | 12.326 |
| Cutting Direction | R |
| Trade Name | V464 |
| Item Height (Inches) | 0 |
| Protruding Length (Metric) | 90.0 |
| Cutting Diameter (mm) | 14.50 cm |
| Insert Size | WOEX0804 |
| Flange Diameter (Metric) | 80.0 |
| Item Length (Inches) | 0.00 |
| Shank Length (mm) | 43 |
| Cutting Diameter (Inch) | 5.709 |
| Step Diameter Length (Metric) | 2.5 |
