Ceratizit
1086021000

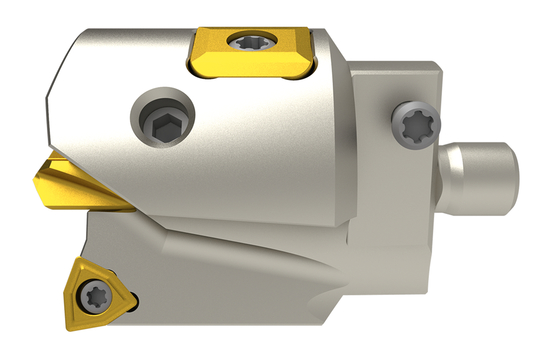

KUB CENTRON DRILL HEAD
Specifications
| Coolant | IC_CENTRAL |
|---|---|
| Connection diameter machine side (inch) | 0.748 |
| Flute Helix Hand | L |
| Connection Diameter Workpiece Side (Metric) | 5.0 |
| Torque (NM) | 0.6 |
| Item Width (Inches) | 1.26 |
| Connection type machine side | KLG |
| Overall Length (Decimal Inch) | 1.437 |
| Overall Length (mm) | 3.65 cm |
| Connection diameter machine side (mm) | 19.0 |
| Item Weight (lbs) | 0.274 |
| Cutting Direction | R |
| Trade Name | CENTRON |
| Item Height (Inches) | 1.26 |
| Protruding Length (Metric) | 23.0 |
| Cutting Diameter (mm) | 2.10 cm |
| Insert Size | WOEX030204 |
| Item Length (Inches) | 3.94 |
| insert interface code | WO0302044N |
| Cutting Diameter (Inch) | 0.827 |
| Step Diameter Length (Metric) | 1.00 |
