Ceratizit
1086419095

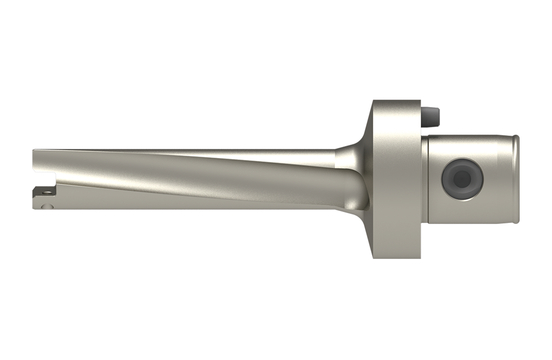

BASE HOLDER
Specifications
| Coolant | IC_CENTRAL |
|---|---|
| Connection diameter machine side (inch) | 1.102 |
| Flute Helix Hand | L |
| Connection Diameter Workpiece Side (Metric) | 19.0 |
| Flange Diameter (Inch) | 1.969 |
| Item Width (Inches) | 2.56 |
| Connection type machine side | ABS |
| Overall Length (Decimal Inch) | 6.69 |
| Connection diameter machine side (mm) | 28.0 |
| Item Weight (lbs) | 1.393 |
| Cutting Direction | R |
| Trade Name | CENTRON |
| Item Height (Inches) | 2.56 |
| Protruding Length (Metric) | 145.0 |
| Usable Length (Metric) | 113.0 |
| Flange Diameter (Metric) | 50.0 |
| Item Length (Inches) | 6.69 |
| Usable length (Inch) | 4.449 |
