Ceratizit
1087225503

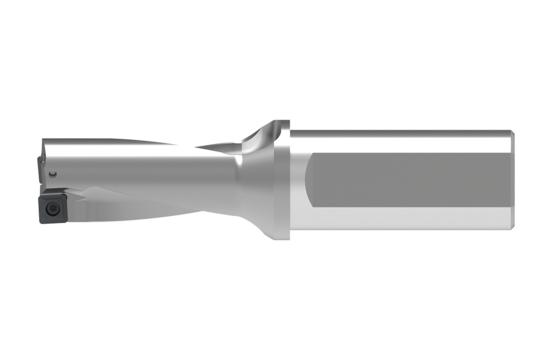

KUB PENTRON - INDEXABLE INSERT DRILL
Specifications
| Overall Length (Metric) | 133 |
|---|---|
| Cutting Direction | R |
| Shank Length (Inch) | 2.362 |
| Shank Length (Metric) | 60 |
| Height | 2.13 |
| Material | 12410544 |
| Usable Length (Metric) | 52 |
| Protruding Length (Metric) | 73 |
| Base Item Number | Pentron |
| Product Type | Industrial Supplies |
| Connection diameter machine side (inch) | 1.26 |
| Flute Helix Hand | L |
| Torque (NM) | 1.3 |
| Weight | 1.197 |
| Flange Diameter (Inch) | 1.535 |
| length chip flute (Inch) | 2.244 |
| Coolant | IC_CENTRAL |
| Connection type machine side | CYL |
| Overall Length (Decimal Inch) | 5.236 |
| Trade Name | PENTRON |
| Width | 2.13 |
| Insert Size | SOGX080308 |
| Flange Diameter (Metric) | 39 |
| length chip flute (Metric) | 57 |
| Length | 5.94 |
| insert interface code | SO0803084N |
| Usable length (Inch) | 2.047 |
| Cutting Diameter (Inch) | 1.004 |
