Ceratizit
11016035

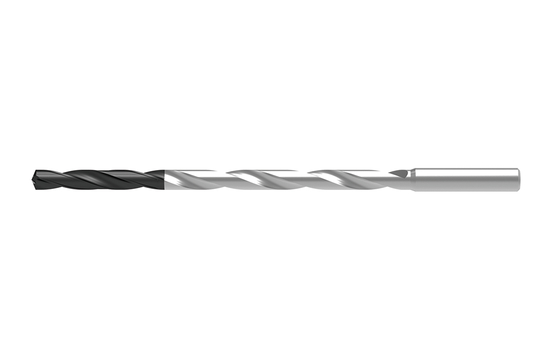

SOLID CARBIDE HELICAL DEEP HOLE DRILL
Specifications
| Cutting Diameter (Inch) | 0.138 |
|---|---|
| Drill Point Angle | 135 |
| Product Line | WNT_PERFORMANCE |
| Shank Length (Inch) | 1.417 |
| Connection diameter machine side (inch) | 0.236 |
| Flute Helix Hand | LEFT |
| length chip flute (Inch) | 2.362 |
| Coolant | IC_CENTRAL |
| Item Width (Inches) | 0.71 |
| Connection type machine side | CYL |
| Overall Length (Decimal Inch) | 3.937 |
| Overall Length (mm) | 10 cm |
| Connection diameter machine side (mm) | 6.0 |
| Connection diameter machine side tolerance | H6 |
| Base Material | VHM |
| Item Weight (lbs) | 1.000 |
| Cutting Direction | RIGHT |
| Item Height (Inches) | 0.71 |
| Number Of Flutes | 2 |
| Protruding Length (Metric) | 64.0 |
| Cutting Diameter (mm) | 3.50 mm |
| Usable Length (Metric) | 55.0 |
| Item Length (Inches) | 5.20 |
| length chip flute (Metric) | 60.0 |
| Shank Length (mm) | 36 |
| Cutting Diameter Tolerance | h7 |
| Point Angle | 135 |
| Usable length (Inch) | 2.165 |
