Ceratizit
11623073

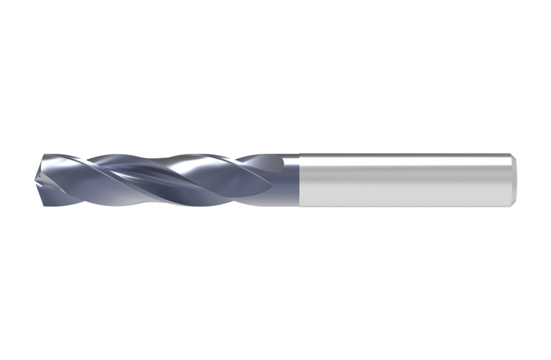

SOLID CARBIDE TWIST DRILL
Specifications
| Cutting Diameter (Inch) | 0.287 |
|---|---|
| Drill Point Angle | 140 |
| Product Line | WNT_STANDARD |
| Shank Length (Inch) | 1.417 |
| Connection diameter machine side (inch) | 0.315 |
| Flute Helix Hand | LEFT |
| length chip flute (Inch) | 1.614 |
| Coolant | IC_CENTRAL |
| Item Width (Inches) | 0.55 |
| Connection type machine side | CYL |
| Overall Length (Decimal Inch) | 3.11 |
| Overall Length (mm) | 7.9 cm |
| Connection diameter machine side (mm) | 8.0 |
| Connection diameter machine side tolerance | H6 |
| Base Material | VHM |
| Item Weight (lbs) | 1.000 |
| Cutting Direction | RIGHT |
| Item Height (Inches) | 0.55 |
| Number Of Flutes | 2 |
| Protruding Length (Metric) | 43.0 |
| Cutting Diameter (mm) | 7.30 mm |
| Usable Length (Metric) | 29.0 |
| Item Length (Inches) | 3.23 |
| length chip flute (Metric) | 41.0 |
| Shank Length (mm) | 36 |
| Cutting Diameter Tolerance | m7 |
| Point Angle | 140 |
| Usable length (Inch) | 1.142 |
