Ceratizit
1587342102

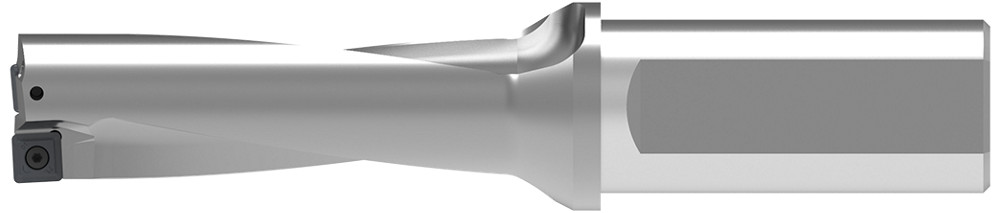

KUB PENTRON - INDEXABLE INSERT DRILL
Specifications
| Cutting Direction | RIGHT |
|---|---|
| Short Description | KUB Pentron 1,50"x3,75"/W8046/42,1/129/R |
| Long Description | KUB PENTRON - INDEXABLE INSERT DRILLKUB-P.3D.1656.R.13-C1500-EF |
| Usable Length (Metric) | 129 |
| Protruding Length (Metric) | 159 |
| Product Line | PERFORMANCE |
| Flute Helix Hand | LEFT |
| UNSPSC Number | 27112809 |
| thread designation inside | 3/4" NPT |
| Overall Length (mm) | 21.2 cm |
| Connection diameter machine side (mm) | 38.1 |
| Trade Name | PENTRON |
| Cutting Diameter (mm) | 4.21 cm |
| Insert Size | SOGX130508 |
| Flange Diameter (Metric) | 50.038 |
| Shank Length (mm) | 95.25 |
| Face Effective Cutting Edge Count | 2 |
| Tightening Torque (Nm) | 6.25 |
| insert interface code | SO1305084N |
| Cutting Diameter (Inch) | 1.656 |
| Cooling | IC_CENTRAL |
