Ceratizit
1587347696

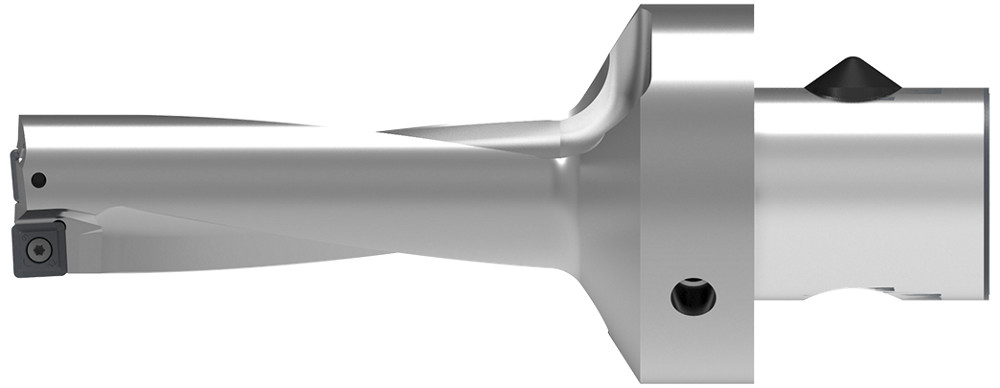

KUB PENTRON - INDEXABLE INSERT DRILL
Specifications
| Cutting Direction | RIGHT |
|---|---|
| Short Description | KUB Pentron ABS63/W8024/47,6/144/R |
| Long Description | KUB PENTRON - INDEXABLE INSERT DRILLKUB-P.3D.1875.R.08-ABS63-F |
| Usable Length (Metric) | 144 |
| Protruding Length (Metric) | 199 |
| Product Line | PERFORMANCE |
| Flute Helix Hand | LEFT |
| UNSPSC Number | 27112809 |
| Overall Length (mm) | 23.7 cm |
| Connection diameter machine side (mm) | 34 |
| Trade Name | PENTRON |
| Cutting Diameter (mm) | 4.76 cm |
| Insert Size | SOGX080308 |
| Flange Diameter (Metric) | 63 |
| Shank Length (mm) | 38 |
| Face Effective Cutting Edge Count | 2.4 |
| Tightening Torque (Nm) | 1.28 |
| insert interface code | SO0803084N |
| Cutting Diameter (Inch) | 1.875 |
| Cooling | IC_CENTRAL |
