Ceratizit
50092060

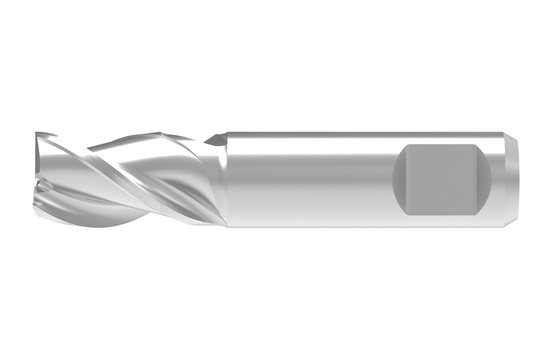

HSSE THROW-AWAY MILLING CUTTER
Specifications
| Overall Length (Inch) | 1.54 |
|---|---|
| Diameter (Metric) | 6 |
| Diameter (Inch) | 0.24 |
| Length Of Cut (Metric) | 8 |
| Material | HSSE CO8 |
| Overall Length (Metric) | 39 |
| Coating/Finish | BLANK |
| Overall Length 2 (Inch) | 2.56 |
| Cutting Direction | Right |
| Helix Angle | 30 degrees |
| Shank Length (Decimal) | 1.03 |
| Shank Length (Metric) | 26 |
| Max. Cutting Depth (Decimal) | 0.32 |
| Connection Diameter (Decimal) | 0.24 |
| Connection Diameter (Metric) | 6 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | E8 |
| Flute Helix Hand | Left |
| Head Length (Decimal) | 0.32 |
| Head Length (Metric) | 8 |
| Length Type | Short |
| Height (Decimal) | 0.51 |
| Length (Decimal) | 2.56 |
| Width (Decimal) | 0.51 |
| Protruding Length (Decimal) | 0.52 |
| Protruding Length (Metric) | 13 |
| Peripheral Effective Cutting Edge Count | 3 |
| Rake Angle Axial | 12 degrees |
| Base Item Number | 50092060 |
| Flute Helix Angle | 30 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Unit Of Measure | Metric |
