Ceratizit
50100115

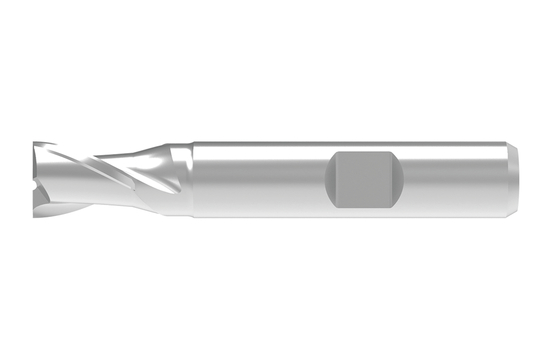

HSSE FINISH MILLING CUTTER
Specifications
| Overall Length (Inch) | 2.76 |
|---|---|
| Diameter (Metric) | 11.5 |
| Diameter (Inch) | 0.46 |
| Length Of Cut (Metric) | 13 |
| Material | HSSE CO8 |
| Overall Length (Metric) | 70 |
| Coating/Finish | BLANK |
| Overall Length 2 (Inch) | 3.98 |
| Cutting Direction | Right |
| Helix Angle | 30 degrees |
| Shank Length (Decimal) | 1.78 |
| Shank Length (Metric) | 45 |
| Max. Cutting Depth (Decimal) | 0.52 |
| Neck Diameter (Decimal) | 0.44 |
| Neck Diameter (Metric) | 11 |
| Connection Diameter (Decimal) | 0.48 |
| Connection Diameter (Metric) | 12 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Flute Helix Hand | Left |
| Head Length (Decimal) | 0.83 |
| Head Length (Metric) | 21 |
| Length Type | Short |
| Height (Decimal) | 0.63 |
| Length (Decimal) | 3.98 |
| Width (Decimal) | 0.63 |
| Protruding Length (Decimal) | 0.99 |
| Protruding Length (Metric) | 25 |
| Peripheral Effective Cutting Edge Count | 2 |
| Rake Angle Axial | 10 degrees |
| Base Item Number | 50100115 |
| Flute Helix Angle | 30 |
| Neck Diameter (Inch) | 0.44 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Unit Of Measure | Metric |
