Ceratizit
50340310

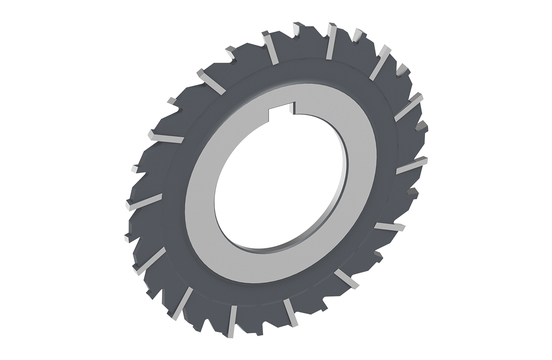

HSSE SIDE & FACE MILLING CUTTER, NARROW
Specifications
| Cutting Diameter (Inch) | 3.15 |
|---|---|
| Long Description | HSSE SIDE & FACE MILLING CUTTER, NARROW N.SF.KV.80X4.Z32 |
| Short Description | N.SF.KV.80X4.Z32 |
| Product Line | WNT PERFORMANCE |
| Overall Height (Metric) | 4 |
| Connection diameter machine side (inch) | 1.063 |
| Flute Helix Angle | 12_15 |
| Item Width (Inches) | 4.02 |
| Connection type machine side | FDA |
| Connection diameter machine side (mm) | 27 |
| Connection diameter machine side tolerance | H7 |
| Base Material | HSSE CO5 |
| Item Weight (lbs) | 0.338 |
| Item Height (Inches) | 0.43 |
| Cutting Diameter (mm) | 8.00 cm |
| Peripheral Effective Cutting Edge Count | 32 |
| Rake Angle Axial | 13_15 |
| Item Length (Inches) | 4.02 |
| Coating | BLANK |
| Overall Height (Inch) | 0.157 |
| Cutting Diameter Tolerance | js16 |
