Ceratizit
50349618

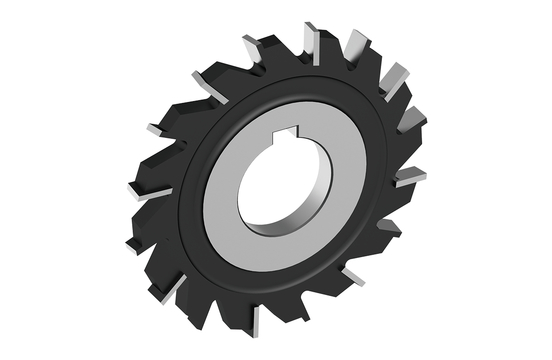

HSSE SIDE AND FACE MILLING CUTTER
Specifications
| Cutting Diameter (Inch) | 6.299 |
|---|---|
| Long Description | HSSE SIDE AND FACE MILLING CUTTER H.SF.FKV.160X32.Z26 |
| Short Description | H.SF.FKV.160X32.Z26 |
| Product Line | WNT PERFORMANCE |
| Overall Height (Metric) | 32 |
| Connection diameter machine side (inch) | 1.575 |
| Flute Helix Angle | 8_12 |
| Item Width (Inches) | 8.86 |
| Connection type machine side | FDA |
| Connection diameter machine side (mm) | 40 |
| Connection diameter machine side tolerance | H7 |
| Base Material | HSSE CO5 |
| Item Weight (lbs) | 9.139 |
| Item Height (Inches) | 1.85 |
| Cutting Diameter (mm) | 16.00 cm |
| Peripheral Effective Cutting Edge Count | 26 |
| Rake Angle Axial | 4_8 |
| Item Length (Inches) | 8.86 |
| Coating | BLANK |
| Overall Height (Inch) | 1.26 |
| Cutting Diameter Tolerance | js16 |
