Ceratizit
50488552

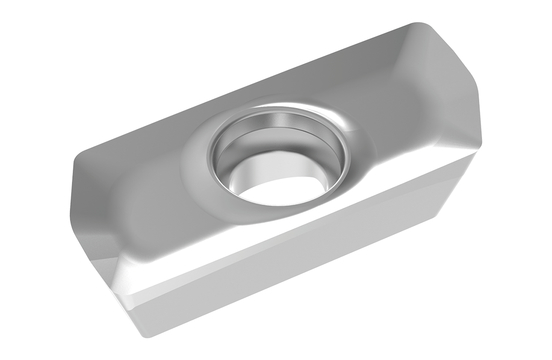

CARBIDE MILLING INSERT
Specifications
| Corner Radius (Metric) | 0.2 |
|---|---|
| Corner Radius (Inch) | 0.008 |
| Inscribed Circle Diameter (Metric) | 9.52 |
| ISO Code | XDHX 190402FR |
| Wiper Edge Length (Metric) | 2.00 |
| Cutting Edge Effective Length (Metric) | 19 |
| Clearance Angle Major | 15.0 |
| Cutting Edge Length (Metric) | 19.00 |
| Product Line | CERATIZIT_PERFORMANCE |
| Insert Thickness (Metric) | 4.76 |
| Insert Hand | RIGHT |
| Screw Hole Diameter (Metric) | 4.65 |
| Item Width (Inches) | 2.2 |
| Base Material | VHM |
| Item Weight (lbs) | 0.237 |
| Item Height (Inches) | 0.55 |
| Designation | 190402FR |
| Inscribed Circle (Metric) | 9.52 |
| Item Length (Inches) | 5.43 |
| insert interface code | XD1904023R |
