Ceratizit
50593180

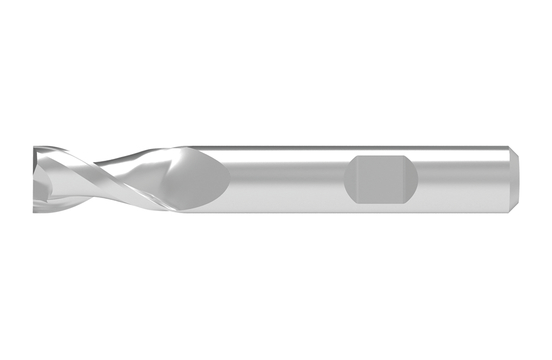

SOLID CARBIDE END MILLING CUTTER
Specifications
| Overall Length (Inch) | 3.94 |
|---|---|
| Diameter (Metric) | 18 |
| Diameter (Inch) | 0.71 |
| Length Of Cut (Metric) | 30 |
| Material | K10F |
| Overall Length (Metric) | 100 |
| Coating/Finish | BLANK |
| Overall Length 2 (Inch) | 4.45 |
| Cutting Direction | Right |
| Helix Angle | 30 degrees |
| Shank Length (Decimal) | 1.89 |
| Shank Length (Metric) | 48 |
| Max. Cutting Depth (Decimal) | 1.19 |
| Connection Diameter (Decimal) | 0.71 |
| Connection Diameter (Metric) | 18 |
| Connection Diameter Tolerance | H5 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | E8 |
| Flute Helix Hand | Left |
| Length Type | Short |
| Height (Decimal) | 1.1 |
| Length (Decimal) | 4.45 |
| Width (Decimal) | 1.1 |
| Protruding Length (Decimal) | 2.05 |
| Protruding Length (Metric) | 52 |
| Corner Chamfer Width (Decimal) | 0.01 |
| Corner Chamfer Width (Metric) | 0.15 |
| Peripheral Effective Cutting Edge Count | 2 |
| Rake Angle Axial | 13 degrees |
| Base Item Number | #50593180 |
| Flute Helix Angle | 30 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Unit Of Measure | Metric |
