Ceratizit
50618180

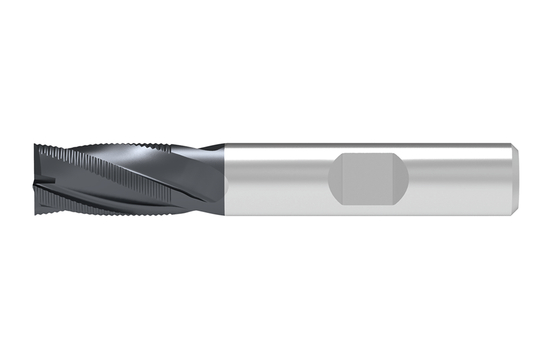

SOLID CARBIDE ROUGH MILLING CUTTER
Specifications
| Overall Length (Inch) | 3.31 |
|---|---|
| Diameter (Metric) | 18 |
| Diameter (Inch) | 0.71 |
| Length Of Cut (Metric) | 19 |
| Material | VHM |
| Overall Length (Metric) | 84 |
| Coating/Finish | TI400 |
| Overall Length 2 (Inch) | 4.45 |
| Cutting Direction | Right |
| Helix Angle | 20 degrees |
| Shank Length (Decimal) | 1.89 |
| Shank Length (Metric) | 48 |
| Max. Cutting Depth (Decimal) | 0.75 |
| Connection Diameter (Decimal) | 0.71 |
| Connection Diameter (Metric) | 18 |
| Connection Diameter Tolerance | H5 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | D11 |
| Flute Helix Hand | Left |
| Length Type | Short |
| Height (Decimal) | 1.1 |
| Length (Decimal) | 4.45 |
| Width (Decimal) | 1.1 |
| Protruding Length (Decimal) | 1.42 |
| Protruding Length (Metric) | 36 |
| Corner Chamfer Width (Decimal) | 0.03 |
| Corner Chamfer Width (Metric) | 0.6 |
| Peripheral Effective Cutting Edge Count | 4 |
| Rake Angle Axial | 10 degrees |
| Base Item Number | #50618180 |
| Flute Helix Angle | 20 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Unit Of Measure | Metric |
