Ceratizit
50633162

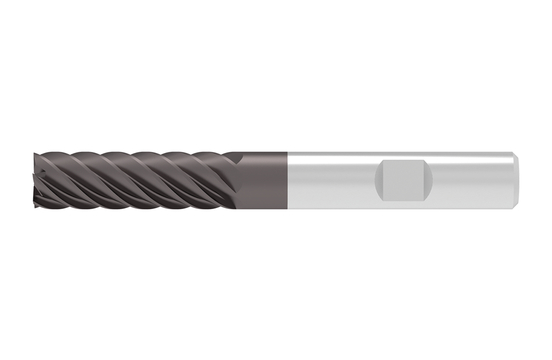

SOLID CARBIDE FINISH MILLING CUTTER
Specifications
| Overall Length (Inch) | 4.93 |
|---|---|
| Diameter (Metric) | 16 |
| Diameter (Inch) | 0.63 |
| Length Of Cut (Metric) | 65 |
| Material | VHM |
| Overall Length (Metric) | 125 |
| Coating/Finish | TI1000 |
| Overall Length 2 (Inch) | 5.28 |
| Cutting Direction | Right |
| Helix Angle | 45 degrees |
| Shank Length (Decimal) | 1.89 |
| Shank Length (Metric) | 48 |
| Max. Cutting Depth (Decimal) | 2.56 |
| Connection Diameter (Decimal) | 0.63 |
| Connection Diameter (Metric) | 16 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | F8 |
| Flute Helix Hand | Left |
| Length Type | Extra Long |
| Height (Decimal) | 0.98 |
| Length (Decimal) | 5.28 |
| Width (Decimal) | 0.98 |
| Protruding Length (Decimal) | 3.04 |
| Protruding Length (Metric) | 77 |
| Corner Chamfer Width (Decimal) | 0.01 |
| Corner Chamfer Width (Metric) | 0.15 |
| Peripheral Effective Cutting Edge Count | 6 |
| Rake Angle Axial | 14 degrees |
| Base Item Number | #50633162 |
| Flute Helix Angle | 45 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Unit Of Measure | Metric |
