Ceratizit

50649042

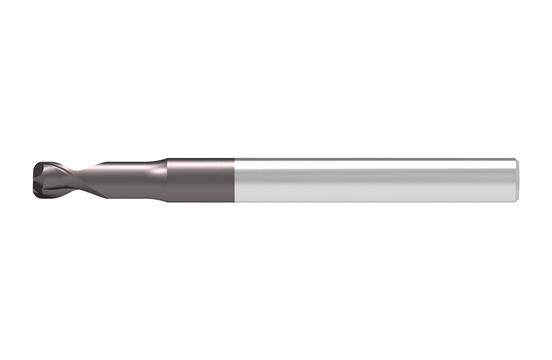

SOLID CARBIDE TORUS MILLING CUTTER

Specifications

Overall Length (Inch)2.165
Corner Radius (Inch)0.002
Corner Radius (Metric)0.04
Short Description3A0289-00400.0012.R02.R00040.HA.B550
Long DescriptionSOLID CARBIDE TORUS MILLING CUTTER 3A0289-00400.0012.R02.R00040.HA.B550
Neck Diameter (Metric)0.37
Neck Diameter (Inch)0.015
Product LineWNT STANDARD
Depth of Cut Maximum (Metric)0.4
Shank Length (Inch)1.417
Connection diameter machine side (inch)0.236
Flute Helix HandLEFT
Flute Helix Angle30
CoolantWITHOUT IC
Item Width (Inches)0.51
Connection type machine sideCYL
Overall Length (mm)5.5 cm
Connection diameter machine side (mm)6
Connection diameter machine side toleranceh5
Base MaterialVHM
Item Weight (lbs)0.055
Cutting DirectionRIGHT
Item Height (Inches)0.51
Protruding Length (Metric)19
Cutting Diameter (mm)400.00 µm
Peripheral Effective Cutting Edge Count2
Rake Angle Axial3
Item Length (Inches)2.56
CoatingTI1000
Head Length (Inch)0.079
Shank Length (mm)36
Cutting Diameter Tolerancef8
Head Length (Metric)2
Cutting Diameter (Inch)0.016
Corner Radius Tolerance (Metric)±0.01
