Ceratizit

50651048

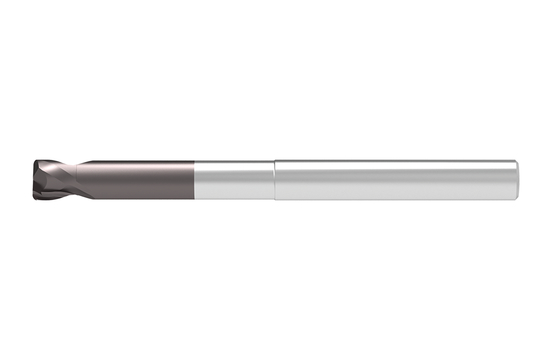

SOLID CARBIDE TORUS MILLING CUTTER

Specifications

Overall Length (Inch)3.346
Corner Radius (Inch)0.039
Corner Radius (Metric)1
Short Description3A0288-04000.0030.R02.R01000.HA.B360
Long DescriptionSOLID CARBIDE TORUS MILLING CUTTER 3A0288-04000.0030.R02.R01000.HA.B360
Neck Diameter (Metric)3.8
Neck Diameter (Inch)0.15
Product LineWNT STANDARD
Depth of Cut Maximum (Metric)3
Shank Length (Inch)1.417
Connection diameter machine side (inch)0.236
Flute Helix HandLEFT
Flute Helix Angle30
Item Width (Inches)0.51
Connection type machine sideCYL
Overall Length (mm)8.5 cm
Connection diameter machine side (mm)6
Connection diameter machine side toleranceh5
Base MaterialVHM
Item Weight (lbs)0.074
Cutting DirectionRIGHT
Item Height (Inches)0.51
Protruding Length (Metric)49
Cutting Diameter (mm)4.00 mm
Peripheral Effective Cutting Edge Count2
Rake Angle Axial3
Item Length (Inches)4.33
CoatingTI1000
Head Length (Inch)0.787
Shank Length (mm)36
Cutting Diameter Tolerancef8
Head Length (Metric)20
Cutting Diameter (Inch)0.157
Corner Radius Tolerance (Metric)±0.01
