Ceratizit
50675020

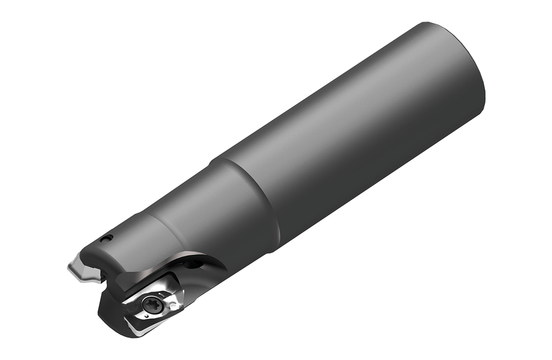

MAXIMILL END MILLING CUTTER
Specifications
| Overall Length (Inch) | 3.307 |
|---|---|
| Cutting Diameter (Inch) | 0.787 |
| Short Description | CHSC.20.R.02-11-A-32 |
| Tool Cutting Edge Angle | 90.0 |
| Long Description | MAXIMILL END MILLING CUTTER CHSC.20.R.02-11-A-32 |
| Product Line | CERATIZIT_PERFORMANCE |
| Depth of Cut Maximum (Metric) | 10.00 |
| Connection diameter machine side (inch) | 0.787 |
| Coolant | IC_OUTSIDE |
| Item Width (Inches) | 1.34 |
| Overall Length (mm) | 8.4 cm |
| Connection diameter machine side (mm) | 20.00 |
| Connection diameter machine side tolerance | H6 |
| Item Weight (lbs) | 0.433 |
| Item Height (Inches) | 3.03 |
| Designation | CHSC.20.R.02-11-A-32 |
| Cutting Diameter (mm) | 2.00 cm |
| Item Length (Inches) | 1.34 |
| Head Length (Inch) | 1.260 |
| Head Length (Metric) | 32.00 |
