Ceratizit
50683063

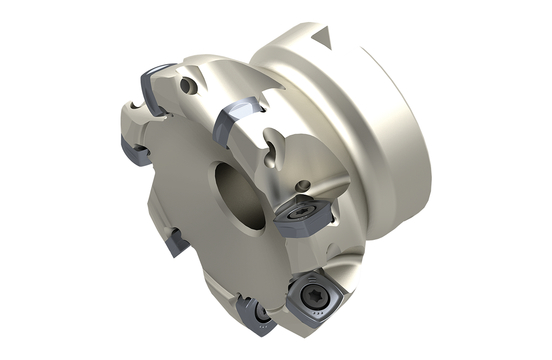

MAXIMILL SHELL FACE MILLING CUTTER
Specifications
| Cutting Diameter (Inch) | 1.803 |
|---|---|
| Body Length (Metric) | 26.44 |
| Body Length (Inch) | 1.041 |
| Overall Length (Inch) | 1.575 |
| Long Description | MAXIMILL SHELL FACE MILLING CUTTER AHFC.63.R.05-12 |
| Short Description | AHFC.63.R.05-12 |
| Product Line | CERATIZIT_PERFORMANCE |
| Depth of Cut Maximum (Metric) | 2.00 |
| Connection diameter machine side (inch) | 0.866 |
| Cutting diameter maximum (inch) | 2.480 |
| Coolant | IC_OUTSIDE |
| Item Width (Inches) | 3.27 |
| Overall Length (mm) | 4 cm |
| Connection diameter machine side (mm) | 22.00 |
| Connection diameter machine side tolerance | H6 |
| Item Weight (lbs) | 1.044 |
| Item Height (Inches) | 1.97 |
| Designation | AHFC.63.R.05-12 |
| Cutting Diameter (mm) | 4.58 cm |
| Tool Cutting Edge Angle | 10.0 |
| Item Length (Inches) | 3.27 |
| Cutting diameter maximum (Metric) | 63.00 |
| Hub Diameter (Metric) | 48.00 |
