Ceratizit
5069305205

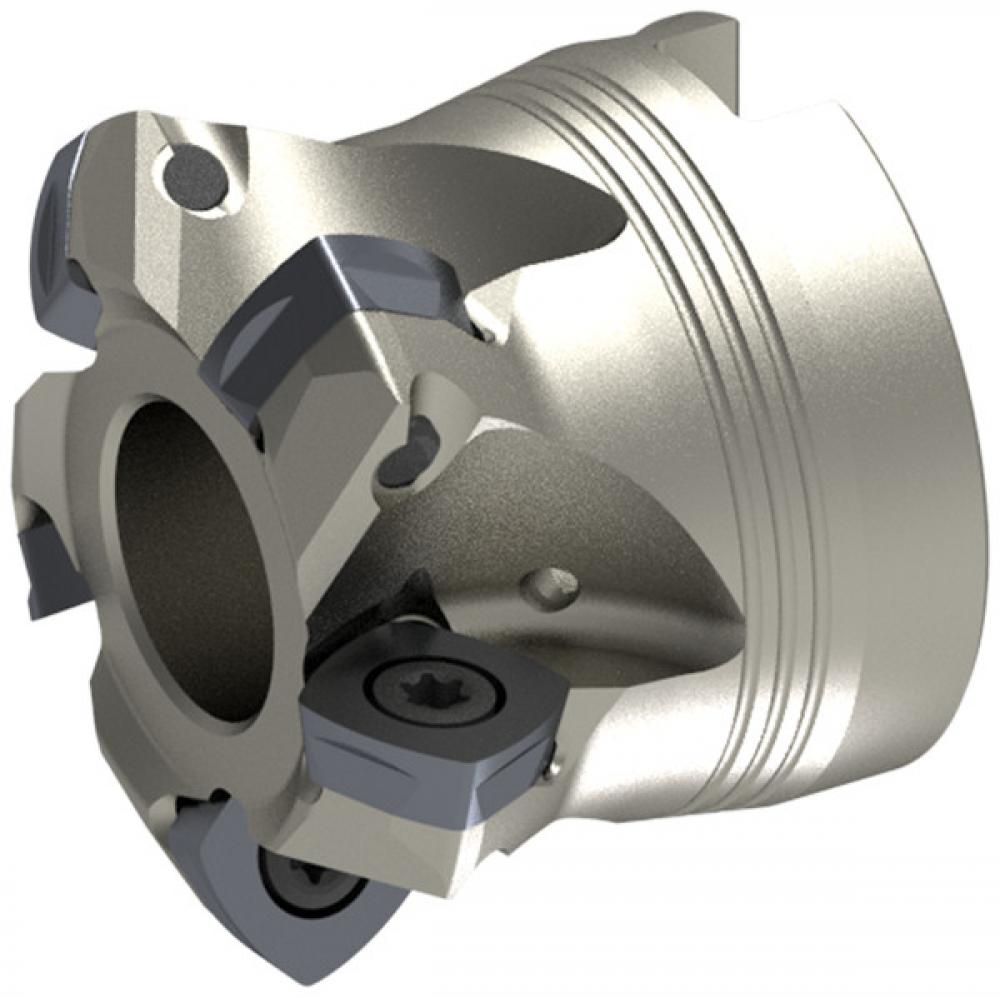

MAXIMILL SHELL FACE MILLING CUTTER
Specifications
| Cutting Diameter (Inch) | 2.047 |
|---|---|
| Overall Length (Inch) | 1.575 |
| Long Description | MAXIMILL SHELL FACE MILLING CUTTER AHFC.52.R.05-12-TUR |
| Short Description | AHFC.52.R.05-12-TUR |
| Product Line | CERATIZIT_PERFORMANCE |
| Depth of Cut Maximum (Metric) | 5.00 |
| Connection diameter machine side (inch) | 0.866 |
| Coolant | IC_OUTSIDE |
| Item Width (Inches) | 2.64 |
| Overall Length (mm) | 4 cm |
| Connection diameter machine side (mm) | 22.00 |
| Connection diameter machine side tolerance | H6 |
| Item Weight (lbs) | 0.611 |
| Item Height (Inches) | 2.64 |
| Designation | AHFC.52.R.05-12-TUR |
| Cutting Diameter (mm) | 5.20 cm |
| Tool Cutting Edge Angle | 30.0 |
| Item Length (Inches) | 2.36 |
| Hub Diameter (Metric) | 43.00 |
