Ceratizit
50737012

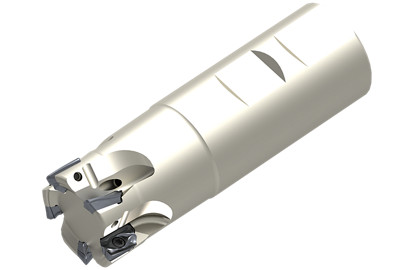

MAXIMILL END MILLING CUTTER
Specifications
| Overall Length (Inch) | 2.953 |
|---|---|
| Cutting Diameter (Inch) | 0.472 |
| Short Description | C211.12.R.01-11-B-20 |
| Tool Cutting Edge Angle | 90.0 |
| Long Description | MAXIMILL END MILLING CUTTER C211.12.R.01-11-B-20 |
| Product Line | CERATIZIT_PERFORMANCE |
| Depth of Cut Maximum (Metric) | 10.00 |
| Connection diameter machine side (inch) | 0.630 |
| Coolant | IC_OUTSIDE |
| Item Width (Inches) | 0.47 |
| Overall Length (mm) | 7.5 cm |
| Connection diameter machine side (mm) | 16.00 |
| Connection diameter machine side tolerance | H6 |
| Item Weight (lbs) | 0.208 |
| Item Height (Inches) | 2.52 |
| Designation | C211.12.R.01-11-B-20 |
| Cutting Diameter (mm) | 1.20 cm |
| Item Length (Inches) | 0.47 |
| Head Length (Inch) | 0.787 |
| Head Length (Metric) | 20.00 |
