Ceratizit
5073714000

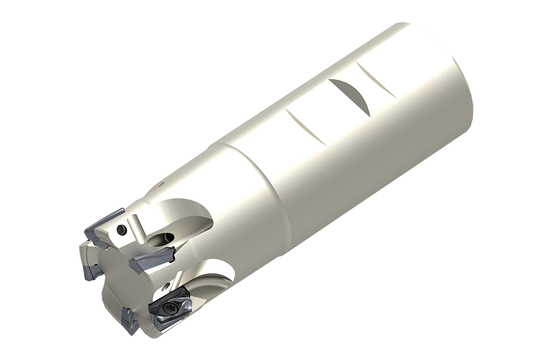

MAXIMILL END MILLING CUTTER
Specifications
| Overall Length (Inch) | 4.803 |
|---|---|
| Cutting Diameter (Inch) | 1.575 |
| Short Description | C211.40.R.06-11-B-50 |
| Tool Cutting Edge Angle | 90.0 |
| Long Description | MAXIMILL END MILLING CUTTER C211.40.R.06-11-B-50 |
| Product Line | CERATIZIT_PERFORMANCE |
| Depth of Cut Maximum (Metric) | 10.00 |
| Connection diameter machine side (inch) | 1.575 |
| Coolant | IC_OUTSIDE |
| Item Width (Inches) | 2.01 |
| Overall Length (mm) | 12.2 cm |
| Connection diameter machine side (mm) | 40.00 |
| Connection diameter machine side tolerance | H6 |
| Item Weight (lbs) | 2.509 |
| Item Height (Inches) | 2.01 |
| Designation | C211.40.R.06-11-B-50 |
| Cutting Diameter (mm) | 4.00 cm |
| Item Length (Inches) | 5.51 |
| Head Length (Inch) | 1.969 |
| Head Length (Metric) | 50.00 |
