Ceratizit
5073783200

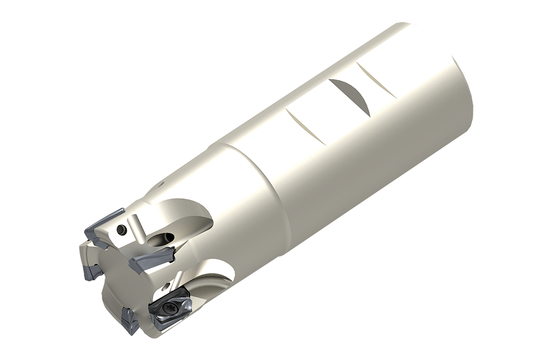

MAXIMILL END MILLING CUTTER
Specifications
| Overall Length (Inch) | 4.016 |
|---|---|
| Cutting Diameter (Inch) | 1.260 |
| Short Description | C211.32.R.04-11-B-40 |
| Tool Cutting Edge Angle | 90.0 |
| Long Description | MAXIMILL END MILLING CUTTER C211.32.R.04-11-B-40 |
| Product Line | CERATIZIT_PERFORMANCE |
| Depth of Cut Maximum (Metric) | 10.00 |
| Connection diameter machine side (inch) | 1.260 |
| Coolant | IC_OUTSIDE |
| Item Width (Inches) | 1.42 |
| Overall Length (mm) | 10.2 cm |
| Connection diameter machine side (mm) | 32.00 |
| Connection diameter machine side tolerance | H6 |
| Item Weight (lbs) | 1.314 |
| Item Height (Inches) | 1.42 |
| Designation | C211.32.R.04-11-B-25 |
| Cutting Diameter (mm) | 3.20 cm |
| Item Length (Inches) | 4.72 |
| Head Length (Inch) | 1.575 |
| Head Length (Metric) | 40.00 |
