Ceratizit
50741140

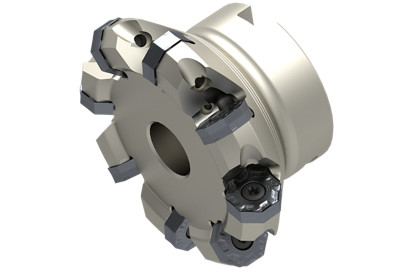

MAXIMILL SHELL FACE MILLING CUTTER
Specifications
| Cutting Diameter (Inch) | 1.575 |
|---|---|
| Overall Length (Inch) | 1.575 |
| Long Description | MAXIMILL SHELL FACE MILLING CUTTER A273.40.R.04-06 |
| Short Description | A273.40.R.04-06 |
| Product Line | CERATIZIT_PERFORMANCE |
| Depth of Cut Maximum (Metric) | 3.5 |
| Connection diameter machine side (inch) | 0.630 |
| Cutting diameter maximum (inch) | 1.976 |
| Coolant | WITHOUT_IC,IC_OUTSIDE |
| Item Width (Inches) | 2.24 |
| Overall Length (mm) | 4 cm |
| Connection diameter machine side (mm) | 16.00 |
| Connection diameter machine side tolerance | H6 |
| Item Weight (lbs) | 0.623 |
| Item Height (Inches) | 1.97 |
| Designation | A273.40.R.04-06 |
| Cutting Diameter (mm) | 4.00 cm |
| Tool Cutting Edge Angle | 45.0 |
| Item Length (Inches) | 2.24 |
| Cutting diameter maximum (Metric) | 50.2 |
| Hub Diameter (Metric) | 38.00 |
