Ceratizit
50751020

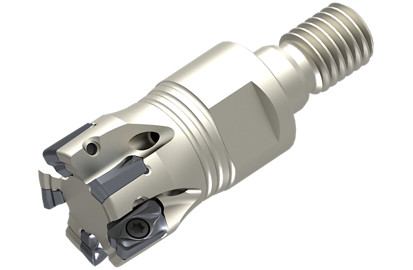

MAXIMILL SCREW-IN END MILLING CUTTER
Specifications
| Material | 11349929 |
|---|---|
| Cutting Diameter (Inch) | 0.787 |
| Long Description | MAXIMILL SCREW-IN END MILLING CUTTER G211.20.R.05-07 |
| Short Description | G211.20.R.05-07 |
| Product Line | CERATIZIT_PERFORMANCE |
| Depth of Cut Maximum (Metric) | 6.00 |
| Connection diameter machine side (inch) | 0.413 |
| Coolant | IC_OUTSIDE |
| Item Width (Inches) | 1.34 |
| Overall Length (Decimal Inch) | 1.34 |
| Connection diameter machine side (mm) | 10.5 |
| Item Weight (lbs) | 0.153 |
| Item Height (Inches) | 2.2 |
| Designation | G211.20.R.05-07 |
| Protruding Length (Metric) | 33.00 |
| Cutting Diameter (mm) | 2.00 cm |
| Drive Size (Metric) | 15 |
| Tool Cutting Edge Angle | 90.0 |
| Item Length (Inches) | 1.34 |
