Ceratizit

50901041

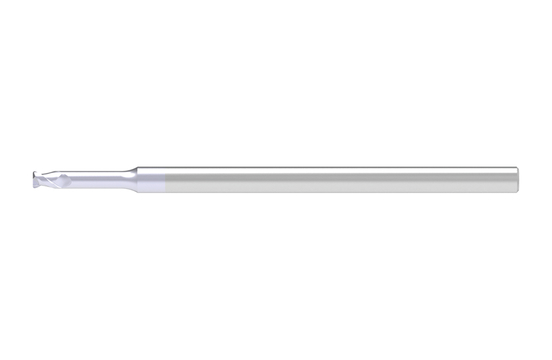

SOLID CARBIDE TORUS MILLING CUTTER

Specifications

Overall Length (Inch)2.165
Corner Radius (Inch)0.002
Corner Radius (Metric)0.04
Short Description3A0249-00400.0005.R02.R00040.HA.B400
Long DescriptionSOLID CARBIDE TORUS MILLING CUTTER 3A0249-00400.0005.R02.R00040.HA.B400
Neck Diameter (Metric)0.37
Neck Diameter (Inch)0.015
Product LineWNT STANDARD
Depth of Cut Maximum (Metric)0.4
Shank Length (Inch)1.102
Connection diameter machine side (inch)0.118
Flute Helix HandLEFT
Flute Helix Angle45
CoolantWITHOUT IC
Item Width (Inches)0.51
Connection type machine sideCYL
Overall Length (mm)5.5 cm
Connection diameter machine side (mm)3
Connection diameter machine side toleranceh5
Base MaterialVHM
Item Weight (lbs)0.025
Cutting DirectionRIGHT
Item Height (Inches)0.51
Protruding Length (Metric)27
Cutting Diameter (mm)400.00 µm
Peripheral Effective Cutting Edge Count2
Rake Angle Axial18
Item Length (Inches)2.56
CoatingTI1001
Head Length (Inch)0.047
Shank Length (mm)28
Cutting Diameter Tolerancef8
Head Length (Metric)1.2
Cutting Diameter (Inch)0.016
Corner Radius Tolerance (Metric)±0.01
