Ceratizit

50902121

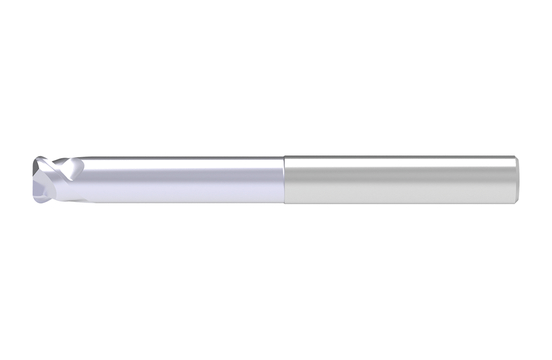

SOLID CARBIDE TORUS MILLING CUTTER

Specifications

Overall Length (Inch)3.937
Corner Radius (Inch)0.039
Corner Radius (Metric)1
Short Description3A0248-12000.0080.R02.R01000.HA.B400
Long DescriptionSOLID CARBIDE TORUS MILLING CUTTER 3A0248-12000.0080.R02.R01000.HA.B400
Neck Diameter (Metric)11.5
Neck Diameter (Inch)0.453
Product LineWNT STANDARD
Depth of Cut Maximum (Metric)8
Shank Length (Inch)1.772
Connection diameter machine side (inch)0.472
Flute Helix HandLEFT
Flute Helix Angle45
CoolantWITHOUT IC
Item Width (Inches)0.71
Connection type machine sideCYL
Overall Length (mm)10 cm
Connection diameter machine side (mm)12
Connection diameter machine side toleranceh5
Base MaterialVHM
Item Weight (lbs)0.346
Cutting DirectionRIGHT
Item Height (Inches)0.71
Protruding Length (Metric)55
Cutting Diameter (mm)1.20 cm
Peripheral Effective Cutting Edge Count2
Rake Angle Axial15
Item Length (Inches)4.49
CoatingTI1001
Head Length (Inch)2.087
Shank Length (mm)45
Cutting Diameter Tolerancef8
Head Length (Metric)53
Cutting Diameter (Inch)0.472
Corner Radius Tolerance (Metric)±0.01
