Ceratizit
50912015

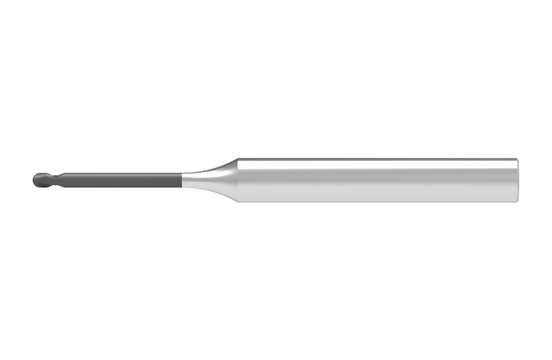

SOLID CARBIDE MICRO BALL NOSED CUTTER
Specifications
| Coating/Finish | Diamond |
|---|---|
| Diameter (Metric) | 1.5 |
| Overall Length (Inch) | 2.56 |
| Length Of Cut (Inch) | 0.08 |
| Overall Length (Metric) | 65 |
| Cutting Direction | Right |
| Material | VHM |
| Length Of Cut (Metric) | 1.8 |
| Diameter (Inch) | 0.06 |
| Unit Of Measure | Metric |
| Connection Diameter (Decimal) | 0.24 |
| Connection Diameter (Metric) | 6 |
| Connection Diameter Tolerance | H5 |
| Connection Type | CYL |
| Diameter Tolerance | F8 |
| Head Length (Decimal) | 0.6 |
| Head Length (Metric) | 15 |
| Length Type | Long |
| Height (Decimal) | 0.51 |
| Length (Decimal) | 3.27 |
| Width (Decimal) | 0.51 |
| Neck Diameter (Decimal) | 0.06 |
| Neck Diameter (Metric) | 1.44 |
| Protruding Length (Decimal) | 1.15 |
| Protruding Length (Metric) | 29 |
| Shank Length (Metric) | 36 |
| Shank Length (Decimal) | 1.42 |
| Flute Helix Angle | 30 degrees |
| Overall Length 2 (Decimal) | 3.27 |
| Flute Helix Hand | Left |
| Peripheral Effective Cutting Edge Count | 2 |
| Rake Angle Axial | 5 degrees |
| Base Item Number | #50912015 |
| Neck Diameter (Inch) | 0.06 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | WNT STANDARD |
| Depth of Cut Maximum (Metric) | 1.8 |
| Shank Length (Inch) | 1.417 |
| Connection diameter machine side (inch) | 0.236 |
| Item Width (Inches) | 0.51 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 6 |
| Connection diameter machine side tolerance | h5 |
| Base Material | VHM |
| Item Weight (lbs) | 0.054 |
| Item Height (Inches) | 0.51 |
| Cutting Diameter (mm) | 1.50 mm |
| Item Length (Inches) | 3.27 |
| Head Length (Inch) | 0.591 |
| Shank Length (mm) | 36 |
| Cutting Diameter Tolerance | f8 |
| Cutting Diameter (Inch) | 0.059 |
