Ceratizit
50948100

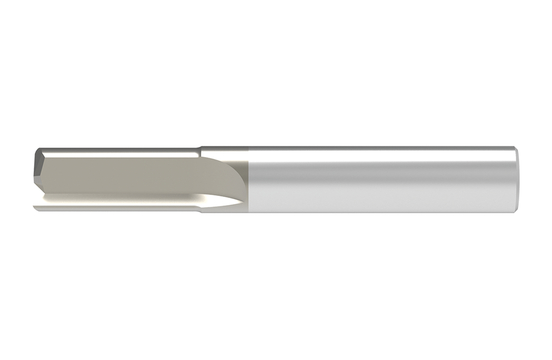

SOLID CARBIDE PLASTIC CUTTER
Specifications
| Overall Length (Inch) | 2.84 |
|---|---|
| Diameter (Metric) | 10 |
| Diameter (Inch) | 0.4 |
| Length Of Cut (Metric) | 25 |
| Material | K10F |
| Overall Length (Metric) | 72 |
| Coating/Finish | TI28 |
| Overall Length 2 (Inch) | 3.5 |
| Cutting Direction | Right |
| Shank Length (Decimal) | 1.58 |
| Shank Length (Metric) | 39.9 |
| Max. Cutting Depth (Decimal) | 0.99 |
| Connection Diameter (Decimal) | 0.4 |
| Connection Diameter (Metric) | 10 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Cutting Diameter Tolerance | H10 |
| Flute Helix Hand | Left |
| Length Type | Medium |
| Height (Decimal) | 0.71 |
| Length (Decimal) | 3.5 |
| Width (Decimal) | 0.71 |
| Protruding Length (Decimal) | 1.26 |
| Protruding Length (Metric) | 32 |
| Peripheral Effective Cutting Edge Count | 2 |
| Rake Angle Axial | 0 degrees |
| Base Item Number | #50948100 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Unit Of Measure | Metric |
