Ceratizit
5096712115

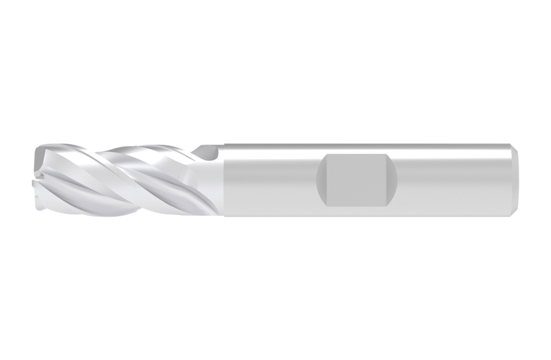

HPC CARBIDE END MILL WITH CORNER RADIUS
Specifications
| Length Of Cut (Inch) | 0.63 |
|---|---|
| Helix Angle | 45 degrees |
| Material | VHM |
| Cutting Diameter (Inch) | 0.48 |
| Corner Radius (Inch) | 0.06 |
| Overall Length (Inch) | 2.88 |
| Cutting Diameter (Metric) | 12 |
| Overall Length (Metric) | 73 |
| Coating/Finish | DPB72S |
| Corner Radius (Metric) | 2 |
| Unit Of Measure | Imperial |
| Corner Radius | 0.06 Inch |
| Neck Diameter | 0.47 Inch |
| Overall Length 2 (Inch) | 3.5 |
| Cutting Direction | Right |
| Neck Diameter (Metric) | 11.7 |
| Connection Diameter (Decimal) | 0.48 |
| Connection Diameter (Metric) | 12 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | F8 |
| Head Length (Decimal) | 1.03 |
| Head Length (Metric) | 26 |
| Length (Decimal) | 3.5 |
| Width (Decimal) | 0.71 |
| Height (Decimal) | 0.71 |
| Length Type | Short |
| Protruding Length (Decimal) | 1.11 |
| Protruding Length (Metric) | 28 |
| Shank Length (Decimal) | 1.78 |
| Shank Length (Metric) | 45 |
| Flute Helix Angle | 45 degrees |
| Flute Helix Hand | Left |
| Max. Depth Of Cut (Metric) | 16 |
| Peripheral Effective Cutting Edge Count | 3 |
| Rake Angle Axial | 5 degrees |
| Base Item Number | #5096712115 |
| Maximum Depth Of Cut (Metric) | 16 |
| Neck Diameter (Inch) | 0.461 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Product Line | WNT PERFORMANCE |
| Depth of Cut Maximum (Metric) | 16 |
| Shank Length (Inch) | 1.772 |
| Connection diameter machine side (inch) | 0.472 |
| Item Width (Inches) | 0.71 |
| Connection type machine side | CYL |
| Overall Length (Decimal Inch) | 2.874 |
| Connection diameter machine side (mm) | 12 |
| Connection diameter machine side tolerance | H6 |
| Base Material | VHM |
| Item Weight (lbs) | 0.25 |
| Item Height (Inches) | 0.71 |
| Cutting Diameter (mm) | 1.20 cm |
| Item Length (Inches) | 3.5 |
| Head Length (Inch) | 1.024 |
| Shank Length (mm) | 45 |
